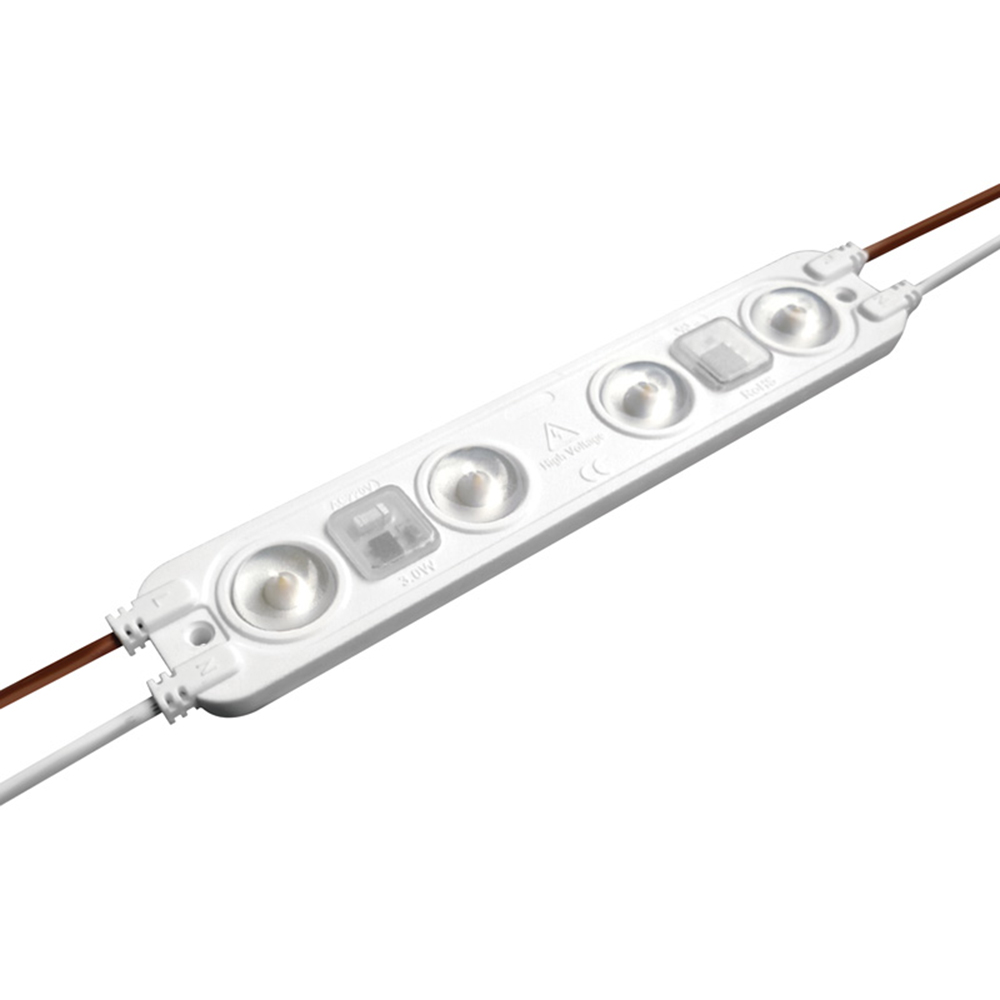

LED MODULE 4L SMD2835 IP65 3W 220VDC 170D

LED MODULE 4L SMD2835 IP65 3W 220VDC 170D


ΚΩΔ: 92010901-045 (3000K) / 92010901-047 (6500Κ-7000Κ)

Model: led Module

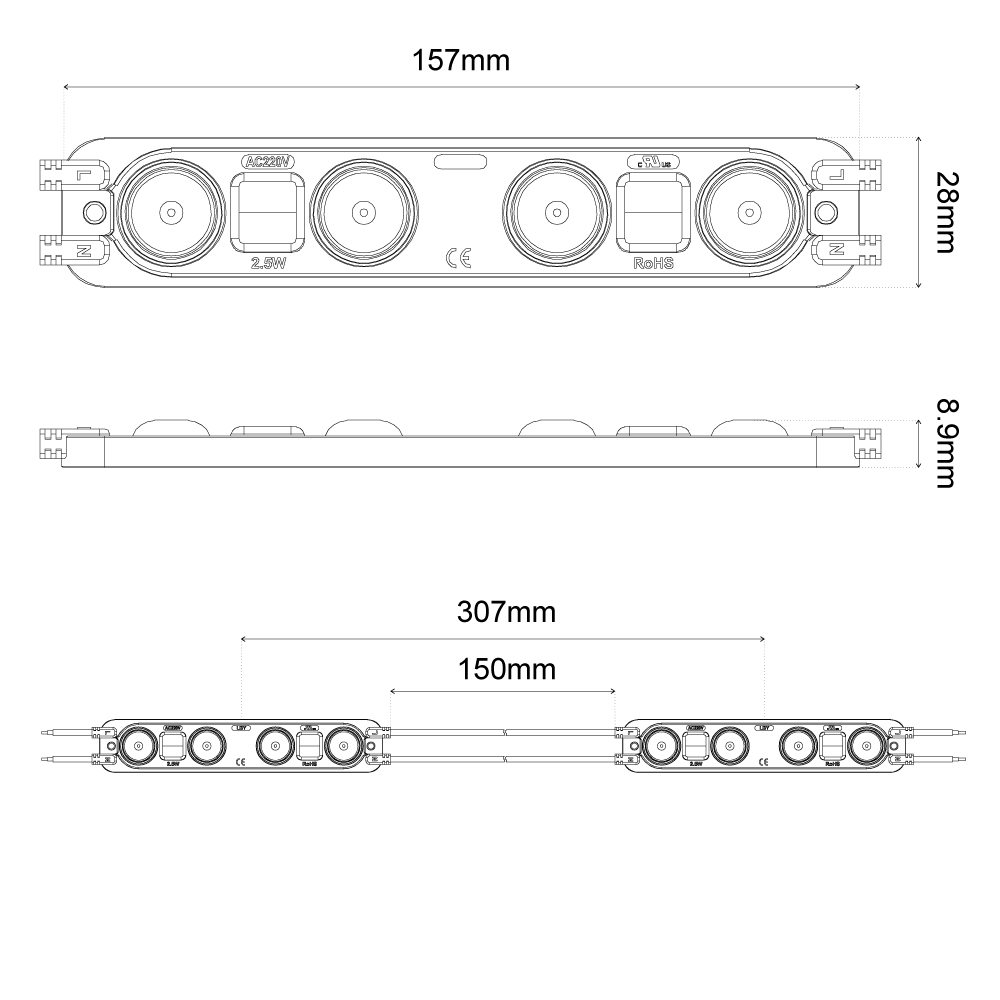

dimensions (W×H×l): 157 × 28 × 8.9 mm

Pieces Per string: 50

IP rating: iP65

Working temperature: -25 ~ +60°c

storage temperature: -25 ~ +70°c

led type: 2835 led

led qty: 4 leds

Voltage:

ac220V

Power: 3W

cct:  3000K / 6500Κ-7000Κ

cri:  Ra≥75

Beam angle: 170d

luminous flux (7000k): 260 lm

Warranty: 3 years

origin: Prc

ARXEIA


Datasheet-Manual

Declaration of Conformity LED Module – EMC RoHS


SKU: .


Model: led Module

dimensions (W×H×l): 157 × 28 × 8.9 mm

Pieces Per string: 50

IP rating: iP65

Working temperature: -25 ~ +60°c

storage temperature: -25 ~ +70°c

led type: 2835 led

led qty: 4 leds

Voltage:

ac220V

Power: 3W

cct:  3000K / 6500Κ-7000Κ

cri:  Ra≥75

Beam angle: 170d

luminous flux (7000k): 260 lm

Warranty: 3 years

origin: Prc
